GX型管式螺旋輸送機

GX螺旋輸送機適宜輸送顆粒度較小和粉狀物料，不適宜輸送易變質、黏性和易結塊的物料。工作溫度為﹣20℃—50℃。輸送角度不大于20°，輸送物料溫 度為200°以下，機長為3-70m。GX螺旋輸送機是原機械部定型產品，整機可靠性高，壽命長，適應性好，安裝維修方便。GX螺旋輸送機廣泛應用于建材、化工、電力、冶金、煤炭、糧食等行業，使用于水平或者傾斜輸送粉狀、粒狀和小塊物料，如煤灰、煤渣、水泥、糧食等物料。

    Product overview
GX screw conveyor is suitable for conveying the smaller the particle size and powder material, not suitable for transporting perishable materials, sticky and agglomerate.Working temperature is 20 ℃ -- - 50 ℃.Conveying material conveying Angle is not more than 20 °, the temperature is below 200 ° of the captain for 3-70 - m.GX screw conveyor is the original prize of finalize the design product, the whole machine has high reliability, long life, good adaptability, easy installation and maintenance.GX screw conveyor is widely used in building material, chemical industry, electric power, metallurgy, coal, food and other industries, used in horizontal or oblique conveying powder, granular and small piece of material, such as fly ash, coal, cement, food and other materials.

    安裝方法

    GX螺旋輸送機安裝結構可以分為頭節、中間節、以及尾節三部分。這三部分是根據用戶需求來設定長度，從而組成一臺完整GX螺旋輸送機。如果水平固定在地面，地面需預留地腳和膨脹絲孔，用以固定。有角度輸送的情況下，一定要事先設定相應支撐。

    GX螺旋輸送機按驅動裝置的方法不同也分為兩種：右裝和左裝。右裝-站在電機尾部分向前看，減速機低速軸在電機的右側；左裝—站在電機尾部向前看，減速機低速軸在電機的左側。
Ways of Installation
GX screw conveyor installation structure can be divided into the head section, the middle section, and the tail section of three parts.The three part is set length according to user requirements, thus constituting a complete GX screw conveyor.If the level is fixed on the ground, the ground should be set aside the anchor hole and expansion silk, fixed.With Angle under the condition of delivery, must be set in advance corresponding support.
The drive device of GX screw conveyor according to the different is divided into two kinds: right and left.Right - stand in the tail section look forward, reducer shaft on the right side of the motor at low speed;Left - stand to look ahead at the end of the motor, to the left side of the reducer shaft in the motor at low speed.

    管式螺旋輸送機圖片

    Photos

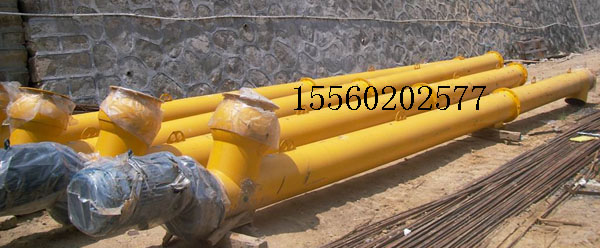

    圓管式螺旋輸送機（帶萬向節）

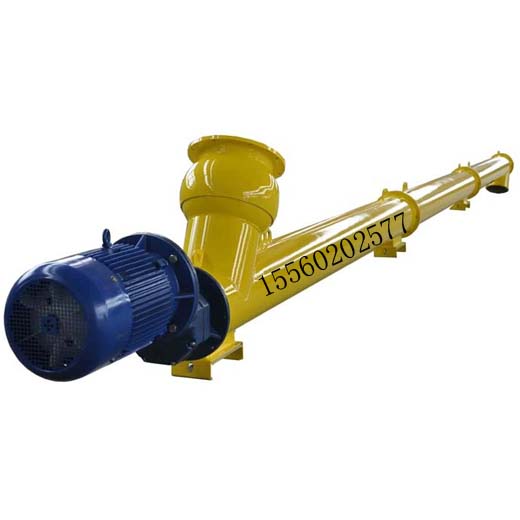

管式螺旋輸送機（帶卸料器）

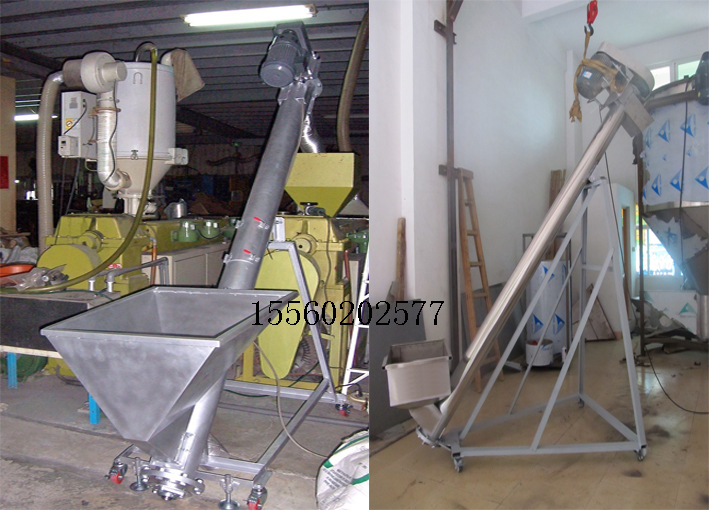

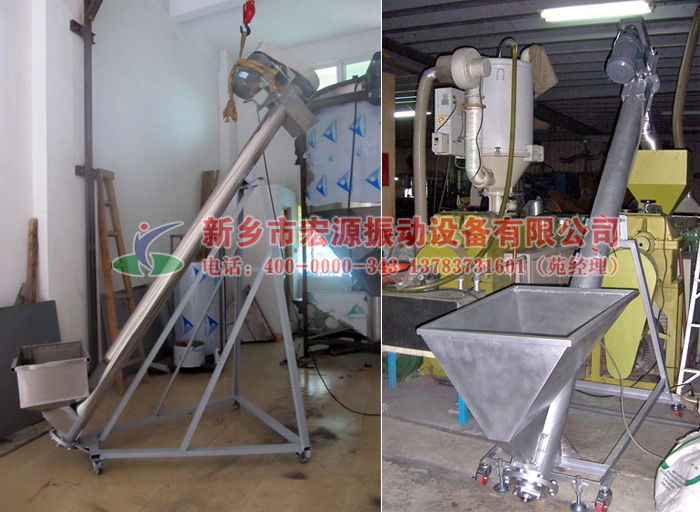

    移動式螺旋輸送機使用現場

    Working site

GX型螺旋輸送機技術參數：
Parameter：

★我公司可根據用戶需要設計制造特殊型號規格的螺旋輸送機。
★我公司對所有技術資料、尺寸保留修改的權利，如實物與文中圖案不符，應以實物為準。
★ My company can design and manufacture according to user needs special specifications of the screw conveyor.
★ For all my company reserves the right to modify technical data, size, such as material object does not accord with the design, the material shall prevail.
